L3OUT Static Ver 3.1(2m)

NOTE
CONFIGURATION
REFERENCE

NOTE

Use Router ID as Loopback Address はチェックを外す

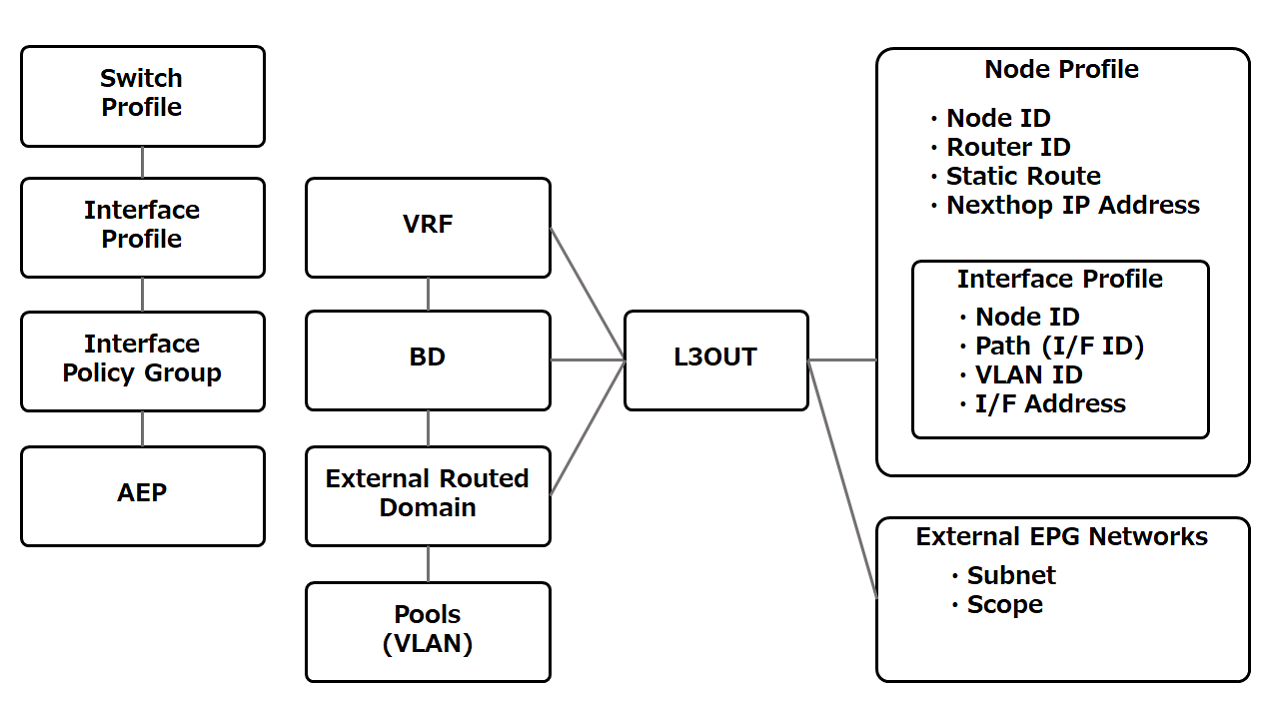

CONFIGURATION

1. Access Policy

1) VLAN Pool
Fabric > Access Policies > Pools > VLAN
- Create VLAN Pool
  - Name
  - Allocation Mode
  - Encap Blocks

2) Domain
Fabric > Access Policies > Physical and External Domains
> External Routed Domains
- Create Layer 3 Domain
  - Name
  - VLAN Pool

3) AEP
Fabric > Access Policies > Global Policies
> Attachable Access Entity Profiles
- Create Attachable Access Entity Profiles
  - Name
  - Domains

4) Interface Policy
Fabric > Access Policies > Interface Policies > Policies
- Create XXXXX

5) Interface Policy Group
Fabric > Access Policies > Interface Policies
> Policy Groups > Leaf Policy Groups
- Create Leaf Access Port Policy Group
  - Name
  - AEP and Each Interface Policies

6) Interface Profile
Fabric > Access Policies > Interface Policies > Profiles
> Leaf Profiles
- Create Leaf Interface Profile
  - Name
  - Interface Selectors
    - Name
    - Interface IDs
    - Interface Policy Group

7) Switch Profile
Fabric > Access Policies > Switch Policies > Profiles
> Leaf Profiles
- Create - Leaf Profile
  - Name
  - Leaf Selectors
    - Name
    - Blocks
  - Interface Selector Profiles

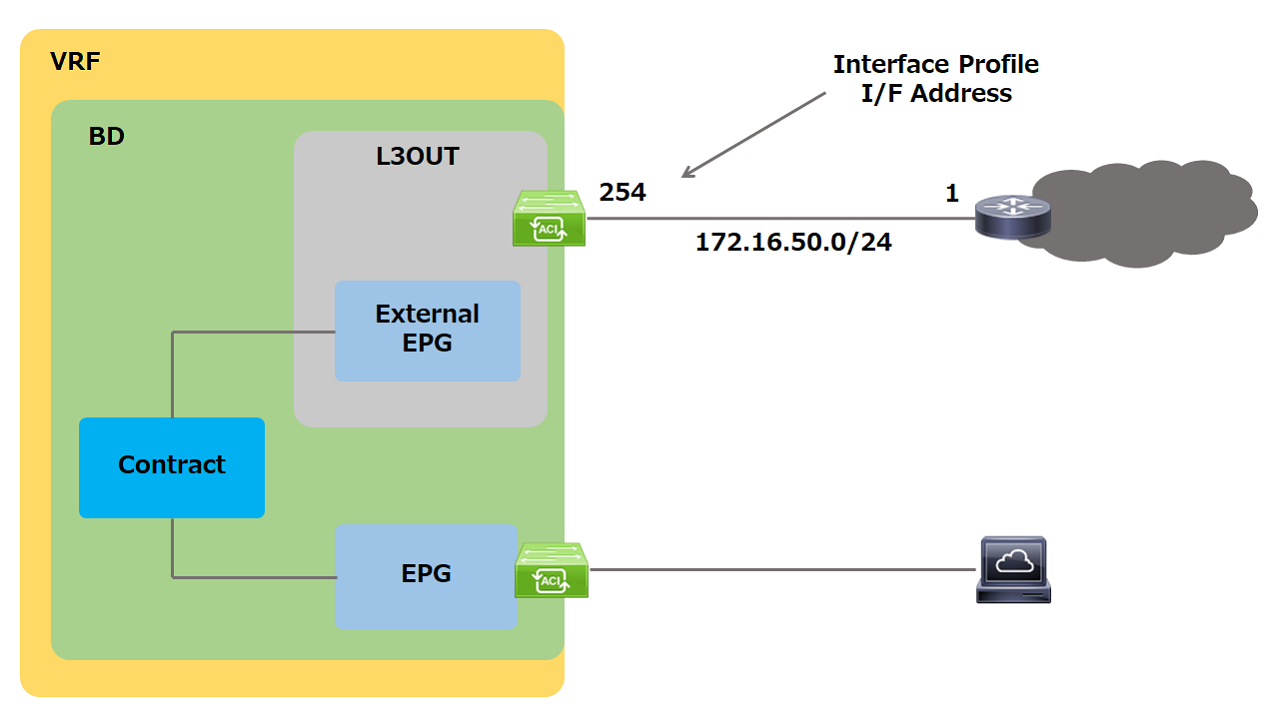

2. L3OUT

Tenants > XXXXX > Networking > External Routed Networks
- Create Routed Outside
  - Name
  - VRF
  - External Routed Domain
  - (BGP/EIGRP/OSPF) No check for Static
  - Nodes and Interfaces Protocol Profiles
    - Name
    - Nodes
      - Node ID
      - Router ID
      - "Use Router ID as Loopback Address" is unchecked
      - Static Routes
        - Prefix
        - Next Hop Address
          - Next Hop IP
          - Preference
    - Interface Profiles
      - Name
      - Interface Type(Routed,SVI,Sub-IF)
        - Routed(Node,Path,IPv4 Primary Address)
        - SVI(Path Type,Node,Path,Encap,IPv4 Primary Address)
        - Sub-IF(Node,Path,Encap,IPv4 Primary Address)
  - External EPG Networks
    - Name
    - Subnet
      - IP Address
      - Scope(External Subnets for the External EPG)

3. Bridge Domain

Tenants > XXXXX > Networking > Bridge Domains > XXXXX
- L3 Configurations
  - Subnets
    - Scope
      Advertised Externally

- L3 Configurations
  - Associated L3 OUTs

4. BGP Route Reflector

System > System Settings > BGP Route Reflector
defaultでOK
- AS Number
- Route Reflector Nodes

Fabric > Fabric Policies > Pod Policies > Policy Groups
- Create Pod Policy Group
  - Name
  - BGP Route Reflector Policy (default)

Fabric - Fabirc Policies - Pod Policies - Profiles
- Pod Profile default
  - Pod Selectors (default)
    - Policy Group

5. Contract

Tenant > XXXXX > Networking > External Routed Networks
> XXXXX > Networks > XXXXX > In the Work pane > Contract

REFERENCE

Cisco Application Centric Infrastructure Best Practices Guide
– Chapter: Routing Design
aci-howto
– 外部L3接続 (Static Route / vPC+SVI 冗長構成)
